Basic Product Introduction
We supply All position automatic Workstation.The unit comes fitted with flexible friction traction rails, perfectly adapted to carry out multi-layer bead welding on heavy-gauge pipes, and features superior intelligent automatic control capability.We are expecting become your long team partner in China.
(1)Applicable Pipe Diameter: ≥168mm,maximum weldable flat plate.
(2)Applicable process: GTAW multi-layer multi-pass.
(3)Product Features of All position automatic Workstation: Equipped with both cold wire/hot wire configurations, featuring patented flexible friction tracks.

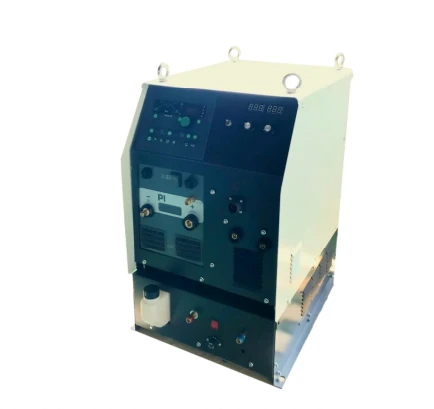

(4)Matching Power Supply: T250 Intelligent TIG Arc Control Power System/TIG350 Intelligent Hot Wire Argon Arc Control Power System.
Product Features
(2)Equipped with comprehensive adjusting capabilities, the all-position automatic workstation allows tuning of height, horizontal position, pitch angle and lateral deflection.
(3)It is integrated with automatic water and gas monitoring modules, which will trigger an automatic welding shutdown once abnormal water or gas supply conditions are detected.
Product Technical Specifications
|
Technical Specifications |
|
|
Product Model |
HW350 |
|
Applicable pipe diameter |
Above 168mm, can weld flat plates up to the maximum |
|
Welding wire diameter |
0.8-1.2mm |
|
Welding wire spool specifications |
Standard 5KGS(205mm) |
|
Wire feed speed |
0-6.3m/min |
|
Horizontal adjustment range |
70mm |
|
Range of adjustment up and down |
120mm |
|
Dwell time on both sides |
0-1second |
|
Nose gear taxiing speed |
0-762mm/min |
|
Welding torch tilt angle |
±30° |
|
Left and right swing angle of the welding gun |
±30° |
|
Volume |
400*500*300mm(Does not include wire spool) |
|
Weight |
12KGS(Excludes welding wire spool) |
Technical Advantages
(2)It delivers high operational reliability, concentrated electric arc and excellent arc stiffness, which effectively guarantees stable welding quality and minimizes the occurrence of welding defects.
(3)Fitted with high-power drive motor and high-pressure water pump, the cooling unit achieves superior heat dissipation efficiency and provides sufficient cooling for the welding gun.
Quality Assurance
(1)Cross-departmental strict contract review procedures are implemented to verify the operability of every single order.
(2)Complete process layout planning and performance verification shall be conducted prior to mass manufacturing.
(3)We enforce rigorous supervision on all raw and auxiliary materials, and all incoming materials comply with advanced national industry standards.
(4)On-site quality monitoring is carried out throughout every production procedure, and all inspection documents shall remain traceable for a period of three years.
(5)All welders hold certified WPS operation qualifications and possess professional welding capabilities to guarantee consistent welding quality.
FAQ
Q: Can you introduce your company?
A: We are a leading manufacturer of automatic welding system with 15years of experience,specializing in welding of various types of pipelines.
Q: How about the packaging?
A: Standard export packaging is which box with inner foam.Customized packaging is available.
Q: When should I pay the balance?
A: The balance is due after we send you the production photos and before we arrange shipment.
Q: Your price is too high.
A: We fully understand your concern about price.Our products adopt high-quality raw materials and strict quality inspection.If you can increase the order quantity,we can offer you a better unit price.
