Basic Product Introduction
We supply Hot-wire TIG pipe welding machine.This product is equipped with a friction-type flexible track, suitable for multi-layer welding of thick-walled pipes, with a high degree of automation.We are expecting become your long team partner in China.
(1) Applicable Pipe Diameter: ≥168mm,maximum weldable flat plate.
(2) Applicable process: GTAW multi-layer multi-pass.
(3) Product Features of Hot-wire TIG pipe welding machine: Equipped with both cold wire/hot wire configurations, featuring patented flexible friction tracks.

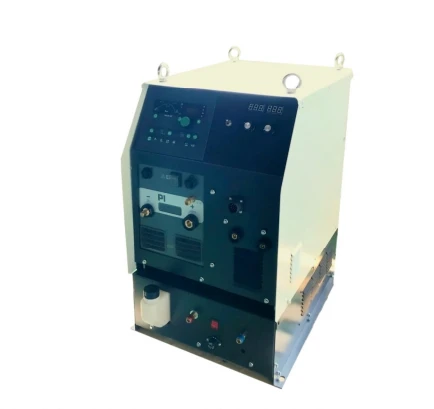

(4) Matching Power Supply: T250 Intelligent TIG Arc Control Power System/TIG350 Intelligent Hot Wire Argon Arc Control Power System.
Welding Process Description
(2) The intelligent control system for pipeline welding has made operation more convenient.
(3) The parameter recording function can trace the welder's welding parameters and the daily workload.
Product Features
(2) Hot-wire TIG pipe welding machine uses a friction walking drive mode to ensure welding stability.
(3) Equipped with both cold and hot wires.
Product Technical Specifications
|
Technical Specifications |
|
|
Product Model |
HW350 |
|
Applicable pipe diameter |
Above 168mm, can weld flat plates up to the maximum |
|
Welding wire diameter |
0.8-1.2mm |
|
Welding wire spool specifications |
Standard 5KGS(205mm) |
|
Wire feed speed |
0-6.3m/min |
|
Horizontal adjustment range |
70mm |
|
Range of adjustment up and down |
120mm |
|
Dwell time on both sides |
0-1second |
|
Nose gear taxiing speed |
0-762mm/min |
|
Welding torch tilt angle |
±30° |
|
Left and right swing angle of the welding gun |
±30° |
|
Volume |
400*500*300mm(Does not include wire spool) |
|
Weight |
12KGS(Excludes welding wire spool) |
Our Advantages
(1) An in-depth understanding of different markets can meet specific needs.
(2) A genuine manufacturer with its own factory located in Kunshan, Jiangsu Province, China.
(3) A strong professional technical team ensures the production of the highest quality products.
(4) The special cost control system ensures the provision of the most competitive prices.
(5) Has extensive experience in outdoor equipment.
